UVC 222nm Excimer Lamp 150W
The UVC 222nm Excimer Lamp 150W offers powerful disinfection capabilities while maintaining safety for human occupancy. This advanced lamp utilizes the optimal 222nm wavelength, which is proven to be highly effective against a broad spectrum of pathogens without penetrating human skin or eyes.
- Overview
- Recommended Products
| Lamp Parameters | |||||
| Model | Power | Voltage | Tube Material | Terminal Material | UV Irradiance |
| PLT-UV222-3W-D16Z65 | 3W | 2000V | Quartz Glass | Silicone | >1000μw/cm²@222nm(h=5cm) |
| PLT-UV222-5W-D16Z115 | 5W | 2000V | Quartz Glass | Silicone | >1100μw/cm²@222nm(h=5cm) |
| PLT-UV222-10W-D16Z115 | 10W | 2500V | Quartz Glass | Silicone | >1600μw/cm²@222nm(h=5cm) |
| PLT-UV222-20W-D33Z120 | 20W | 3000V | Quartz Glass | Ceramic | >35μw/cm2@222nm(h=100cm) |
| PLT-UV222-60W-D16Z589 | 60W | 2500V | Quartz Glass | Ceramic | >70μw/cm2@222nm(h=100cm) |

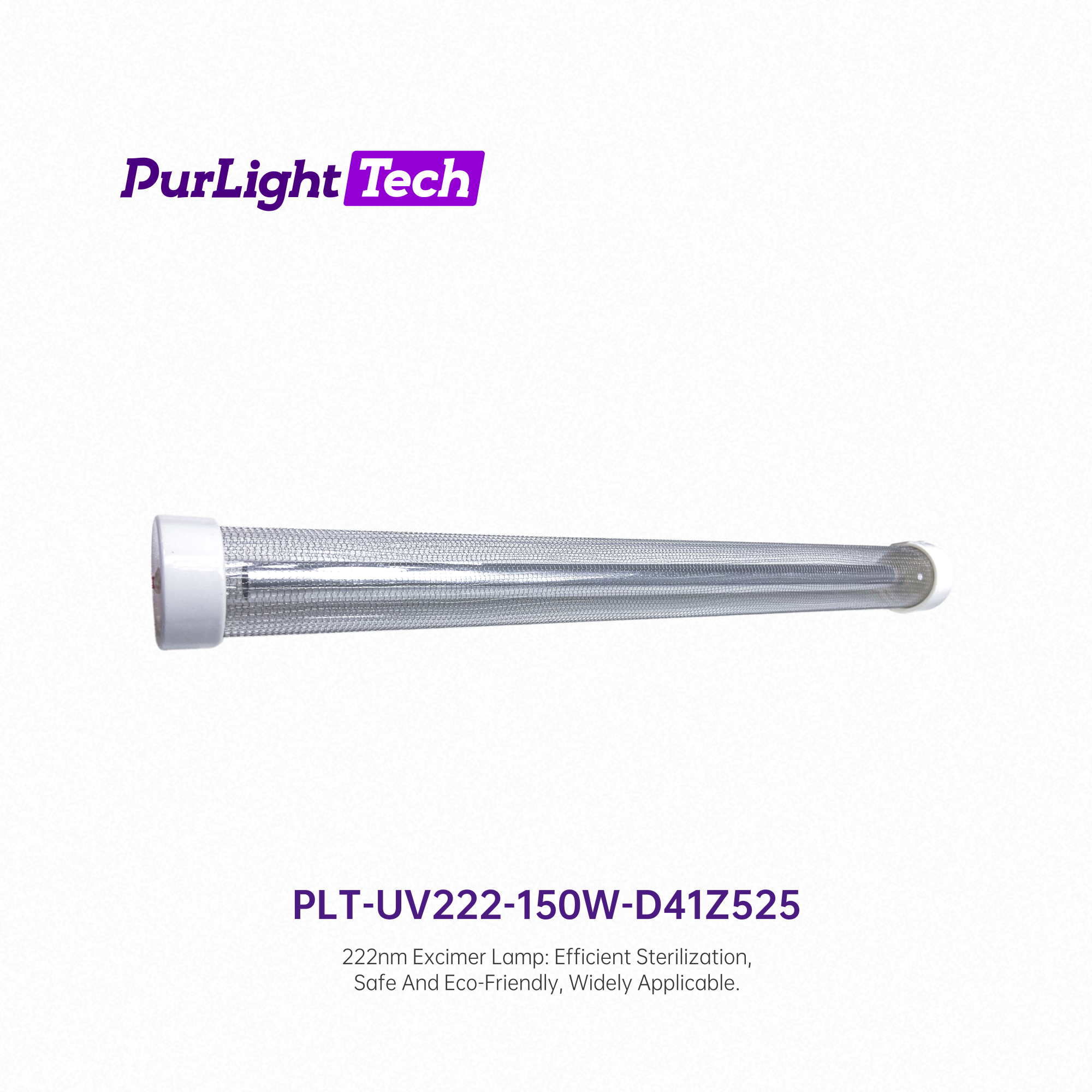

| PLT-UV222-150W-D41Z525 | 150W | 3500V | Quartz Glass | Ceramic | >380μw/cm2@222nm(h=100cm ) |
| Ballast Parameters | ||||||
| Model | Input Voltage | Max Current | Load Power | Output Voltage | Efficiency(n) | Dimensions |
| ES-3.7V-3W | DC 3.7V | 0.8 [email protected] | 3W | 2.0KV MAX | >80% | 52*27*23mm |
| ES-24V-5W | DC 24V | 0.38 A@24V | 5-10W | 2.0KV MAX | >85% | 52*27*23mm |
| ES-23.5-10W-S | DC 24V | 0.38 A@24V | 5-10W | 2.5KV MAX | >85% | 84*46*28mm |
| ES-24V-20W | DC 24V | 1.25 A@24V | 15-30W | 2.5KV MAX | >82% | 122*53*32mm |
| ES-24V-60W | DC 24V | 2.7 A@24V | 40-60W | 3KV MAX | >85% | 122*53*32mm |
| ES-U-150W | 110-240v 50-60Hz | 0.72A@230V | 80-150W | 3.5KV MAX | >90% | 152*95*56.5mm |
Key Features
High-Intensity Output: The 150W power rating ensures maximum coverage and rapid disinfection of large areas.
Safe for Occupied Spaces: The 222nm wavelength provides germicidal benefits without the associated health risks of traditional UV-C light.
Instant Operation: Achieves full effectiveness immediately upon activation, with no need for warm-up periods.
Durable Performance: Engineered for long-term reliability with minimal maintenance requirements.
Applications
This powerful lamp is suitable for use in:
Healthcare Settings: Hospitals, operating rooms, and patient care areas
Commercial Spaces: Large offices, retail environments, and food service areas
Public Venues: Airports, schools, gyms, and public transportation hubs
Industrial Facilities: Manufacturing plants and warehouses requiring high hygiene standards
Technical Benefits
Precision Wavelength Control: Ensures consistent 222nm output for optimal disinfection efficiency
Advanced Safety Design: Built-in features prevent harmful exposure while maintaining germicidal effectiveness
Versatile Installation Options: Can be mounted in multiple configurations to suit different space requirements
