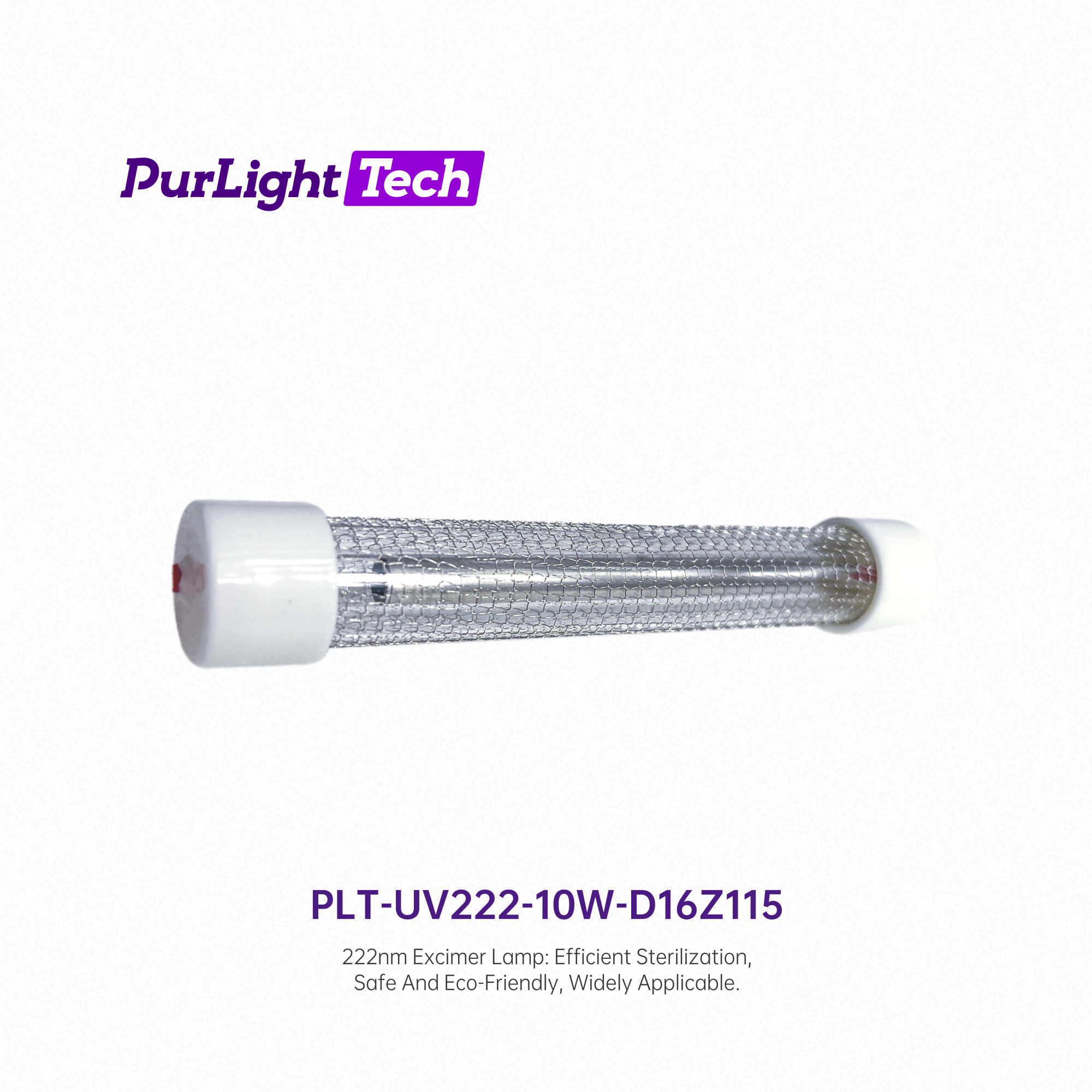

222nm 10W Far UVC Lamp For Industrial Sterilization Box
Looking for an efficient and safe disinfection solution for your industrial sterilization box? The 222nm Far UVC Lamp is the perfect fit. This advanced lamp quickly kills viruses and bacteria while keeping human skin safe.
- Overview
- Recommended Products
| Lamp Parameters | |||||
| Model | Power | Voltage | Tube Material | Terminal Material | UV Irradiance |
| PLT-UV222-3W-D16Z65 | 3W | 2000V | Quartz Glass | Silicone | >1000μw/cm²@222nm(h=5cm) |
| PLT-UV222-5W-D16Z115 | 5W | 2000V | Quartz Glass | Silicone | >1100μw/cm²@222nm(h=5cm) |
| PLT-UV222-10W-D16Z115 | 10W | 2500V | Quartz Glass | Silicone | >1600μw/cm²@222nm(h=5cm) |
| PLT-UV222-20W-D33Z120 | 20W | 3000V | Quartz Glass | Ceramic | >35μw/cm2@222nm(h=100cm) |
| PLT-UV222-60W-D16Z589 | 60W | 2500V | Quartz Glass | Ceramic | >70μw/cm2@222nm(h=100cm) |
| PLT-UV222-150W-D41Z525 | 150W | 3500V | Quartz Glass | Ceramic | >380μw/cm2@222nm(h=100cm ) |
| Ballast Parameters | ||||||
| Model | Input Voltage | Max Current | Load Power | Output Voltage | Efficiency(n) | Dimensions |
| ES-3.7V-3W | DC 3.7V | 0.8 [email protected] | 3W | 2.0KV MAX | >80% | 52*27*23mm |
| ES-24V-5W | DC 24V | 0.38 A@24V | 5-10W | 2.0KV MAX | >85% | 52*27*23mm |
| ES-23.5-10W-S | DC 24V | 0.38 A@24V | 5-10W | 2.5KV MAX | >85% | 84*46*28mm |
| ES-24V-20W | DC 24V | 1.25 A@24V | 15-30W | 2.5KV MAX | >82% | 122*53*32mm |
| ES-24V-60W | DC 24V | 2.7 A@24V | 40-60W | 3KV MAX | >85% | 122*53*32mm |
| ES-U-150W | 110-240v 50-60Hz | 0.72A@230V | 80-150W | 3.5KV MAX | >90% | 152*95*56.5mm |
Why Choose This Lamp?
Powerful Germ-Killing: It can eliminate 99.9% of harmful pathogens, including tough airborne ones.
Safe for People: Unlike traditional UV lamps, this one is harmless to skin and eyes.
Eco-Friendly: Mercury-free design reduces environmental impact.
Durable: High-purity quartz glass and aluminum alloy housing ensure long-lasting use.
Low Maintenance: Instant full power output and no lifespan reduction from frequent switching.
Perfect For Various Industries
Food processing, pharmaceutical manufacturing, laboratories, healthcare facilities, and commercial spaces can all benefit from this lamp. It provides reliable disinfection in industrial sterilization boxes, maintaining high standards of hygiene and safety.
Technical Highlights
The lamp features filtered technology that ensures precise 222nm emission, eliminating harmful longer wavelengths.
