Portable Far UVC 222nm Lamp Ultraviolet Light UV-C Room Sterilizer Lamp UV Disinfection Lamp
The 222nm far ultraviolet light cannot penetrate the skin and eyes, making it much safer for the human body compared to traditional UV lights. This advanced disinfection solution is effective at killing viruses and bacteria while keeping people safe.
- Overview
- Recommended Products
| Lamp Parameters | |||||
| Model | Power | Voltage | Tube Material | Terminal Material | UV Irradiance |
| PLT-UV222-3W-D16Z65 | 3W | 2000V | Quartz Glass | Silicone | >1000μw/cm²@222nm(h=5cm) |
| PLT-UV222-5W-D16Z115 | 5W | 2000V | Quartz Glass | Silicone | >1100μw/cm²@222nm(h=5cm) |
| PLT-UV222-10W-D16Z115 | 10W | 2500V | Quartz Glass | Silicone | >1600μw/cm²@222nm(h=5cm) |
| PLT-UV222-20W-D33Z120 | 20W | 3000V | Quartz Glass | Ceramic | >35μw/cm2@222nm(h=100cm) |

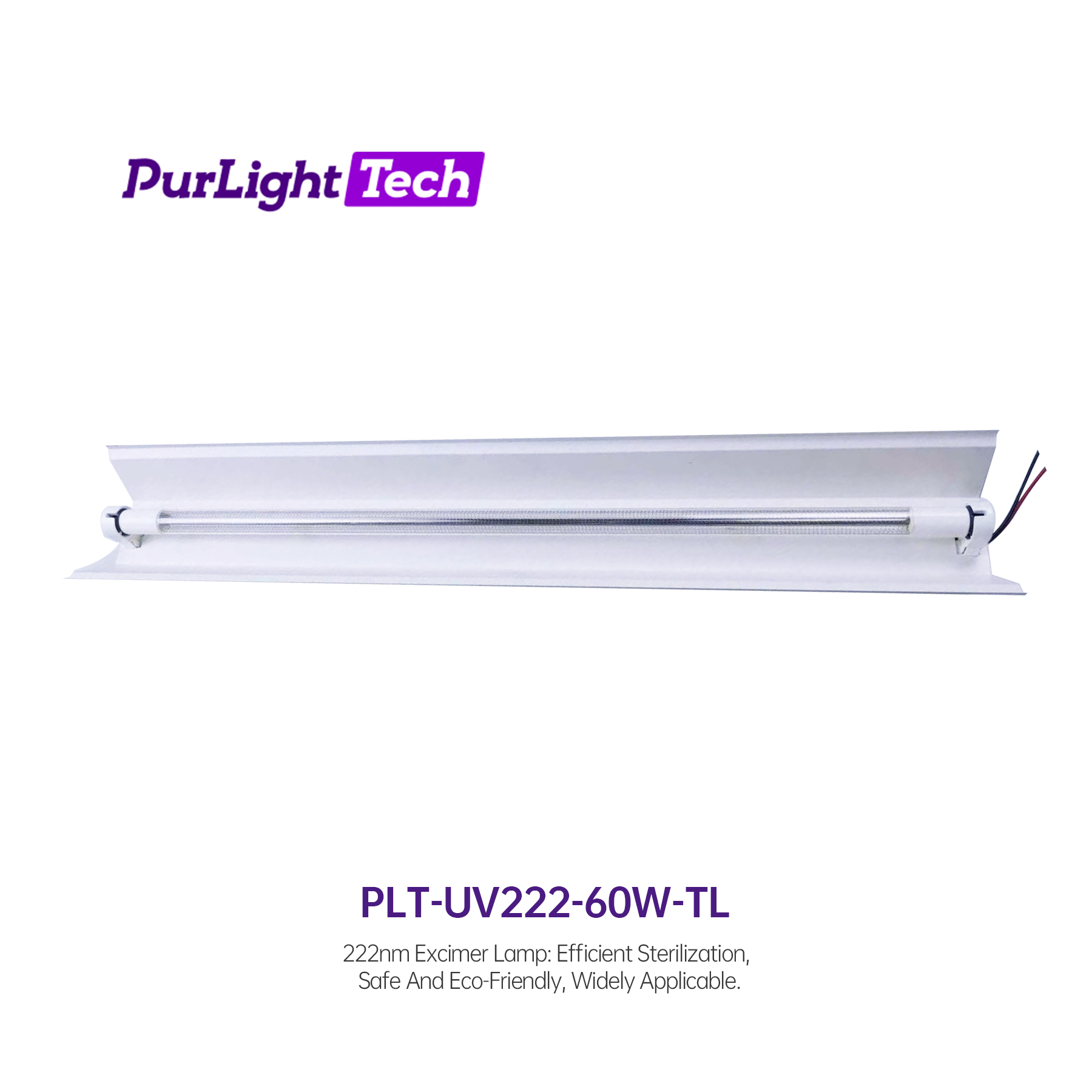

| PLT-UV222-60W-D16Z589 | 60W | 2500V | Quartz Glass | Ceramic | >70μw/cm2@222nm(h=100cm) |
| PLT-UV222-150W-D41Z525 | 150W | 3500V | Quartz Glass | Ceramic | >380μw/cm2@222nm(h=100cm ) |
| Ballast Parameters | ||||||
| Model | Input Voltage | Max Current | Load Power | Output Voltage | Efficiency(n) | Dimensions |
| ES-3.7V-3W | DC 3.7V | 0.8 [email protected] | 3W | 2.0KV MAX | >80% | 52*27*23mm |
| ES-24V-5W | DC 24V | 0.38 A@24V | 5-10W | 2.0KV MAX | >85% | 52*27*23mm |
| ES-23.5-10W-S | DC 24V | 0.38 A@24V | 5-10W | 2.5KV MAX | >85% | 84*46*28mm |
| ES-24V-20W | DC 24V | 1.25 A@24V | 15-30W | 2.5KV MAX | >82% | 122*53*32mm |
| ES-24V-60W | DC 24V | 2.7 A@24V | 40-60W | 3KV MAX | >85% | 122*53*32mm |
| ES-U-150W | 110-240v 50-60Hz | 0.72A@230V | 80-150W | 3.5KV MAX | >90% | 152*95*56.5mm |
Flexible Installation Options
This lamp offers three convenient hanging methods to suit different spaces:
1.Wall mounting through the wall hole
2.Ceiling suspension via the top connecting ring
3.Tripod connection for versatile placement

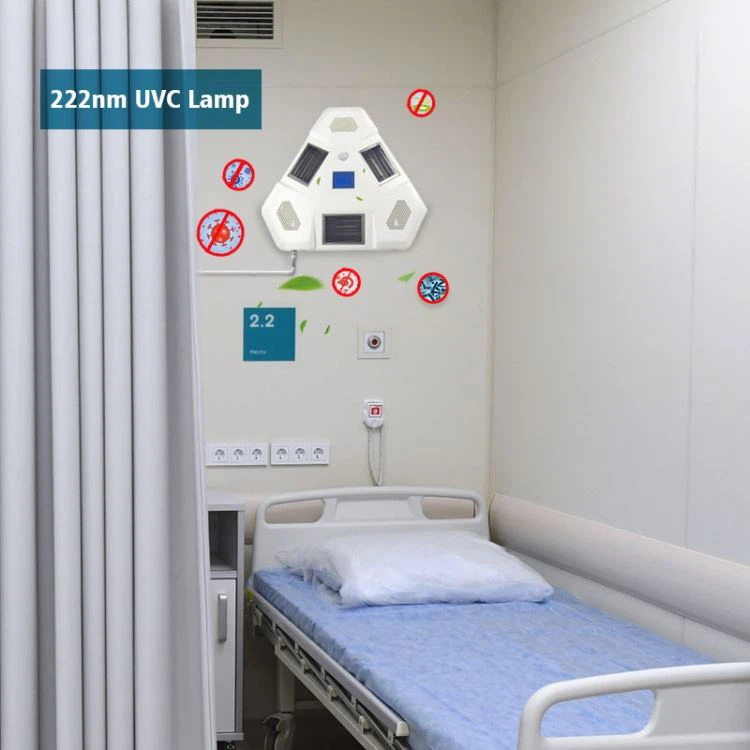

Wide Range of Applications
Ideal for various scenarios including:
Elevators: Maintain air quality and surface hygiene in enclosed spaces
Restaurants: Ensure a clean environment for diners
Airport Waiting Rooms: Protect travelers from airborne pathogens
Supermarkets: Keep shopping areas sanitary
